Telecommunication Infrastructure

In this notebook, we will perform a damage and risk assessment for telecommunication infrastructure. The assessment is based on combining hazard data (e.g., flood depths) with vulnerability curves to estimate the potential damage to infrastructure.

We will follow the steps outlined below to conduct the assessment:

1. Loading the necessary packages:
   We will import the Python libraries required for data handling, analysis, and visualization.

2. Loading the data:
   The infrastructure data (e.g., telecommunication towers) and hazard data (e.g., flood depths) will be loaded into the notebook.

3. Preparing the data:
   The infrastructure and hazard data will be processed and data gaps can be filled, if required.

4. Performing the damage assessment:
   We will apply vulnerability curves to estimate the potential damage based on the intensity of the hazard.

5. Visualizing the results:
   Finally, we will visualize the estimated damage using graphs and maps to illustrate the impact on telecommunication infrastructure.

1. Loading the Necessary Packages

To perform the assessment, we are going to make use of several python packages.

In case you run this in Google Colab, you will have to install the packages below (remove the hashtag in front of them).

#!pip install damagescanner==0.9b14
#!pip install contextily
#!pip install exactextract
#!pip install lonboard

In this step, we will import all the required Python libraries for data manipulation, spatial analysis, and visualization.

import warnings
import xarray as xr
import numpy as np
import pandas as pd
import geopandas as gpd
import seaborn as sns
import shapely

import matplotlib.pyplot as plt
import contextily as cx

import damagescanner.download as download
from damagescanner.core import DamageScanner
from damagescanner.osm import read_osm_data
from damagescanner.base_values import DICT_CIS_VULNERABILITY_FLOOD

from lonboard import viz

warnings.simplefilter(action='ignore', category=FutureWarning)
warnings.simplefilter(action='ignore', category=RuntimeWarning) # exactextract gives a warning that is invalid

Specify the country of interest

Before we continue, we should specify the country for which we want to assess the damage. We use the ISO3 code for the country to download the OpenStreetMap data.

country_full_name = 'Vietnam'
country_iso3 = 'VNM'

2. Loading the Data

In this step, we will load four key datasets:

1. Infrastructure data:
   This dataset contains information on the location and type of telecommunication infrastructure (e.g., telecommunication masts). Each asset may have attributes such as type, length, and replacement cost.

2. Hazard data:
   This dataset includes information on the hazard affecting the infrastructure (e.g., flood depth at various locations).

3. Vulnerability curves:
   Vulnerability curves define how the infrastructure’s damage increases with the intensity of the hazard. For example, flood depth-damage curves specify how much damage occurs for different flood depths.

4. Maximum damage values:
   This dataset contains the maximum possible damage (in monetary terms) that can be incurred by individual infrastructure assets. This is crucial for calculating total damage based on the vulnerability curves.

Infrastructure Data

We will perform this example analysis for Vietnam. To start the analysis, we first download the OpenStreetMap data from GeoFabrik.

infrastructure_path = download.get_country_geofabrik(country_iso3)

Now we load the data and read only the telecommunication data.

%%time
features = read_osm_data(infrastructure_path,asset_type='telecom')

CPU times: total: 1min 53s
Wall time: 2min 40s

sub_types = features.object_type.unique()

And we can explore our data interactively

viz(features)

Hazard Data

For this example, we make use of the flood data provided by CDRI.

We use a 1/100 flood map to showcase the approach.

hazard_map = xr.open_dataset("https://hazards-data.unepgrid.ch/global_pc_h100glob.tif", engine="rasterio")

hazard_map

<xarray.Dataset> Size: 747GB
Dimensions:      (band: 1, x: 432000, y: 216000)
Coordinates:
  * band         (band) int32 4B 1
  * x            (x) float64 3MB -180.0 -180.0 -180.0 ... 180.0 180.0 180.0
  * y            (y) float64 2MB 90.0 90.0 90.0 90.0 ... -90.0 -90.0 -90.0 -90.0
    spatial_ref  int32 4B ...
Data variables:
    band_data    (band, y, x) float64 746GB ...

xarray.Dataset

• Dimensions:
  • band: 1
  • x: 432000
  • y: 216000
• Coordinates: (4)
  • band
    (band)
    int32
    1

    array([1])

  • x
    (x)
    float64
    -180.0 -180.0 ... 180.0 180.0

    array([-179.999583, -179.99875 , -179.997917, ...,  179.997917,  179.99875 ,
            179.999583])

  • y
    (y)
    float64
    90.0 90.0 90.0 ... -90.0 -90.0

    array([ 89.999583,  89.99875 ,  89.997917, ..., -89.997917, -89.99875 ,
           -89.999583])

  • spatial_ref
    ()
    int32
    ...

    crs_wkt :

    GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AXIS["Latitude",NORTH],AXIS["Longitude",EAST],AUTHORITY["EPSG","4326"]]

    semi_major_axis :

    6378137.0

    semi_minor_axis :

    6356752.314245179

    inverse_flattening :

    298.257223563

    reference_ellipsoid_name :

    WGS 84

    longitude_of_prime_meridian :

    0.0

    prime_meridian_name :

    Greenwich

    geographic_crs_name :

    WGS 84

    horizontal_datum_name :

    World Geodetic System 1984

    grid_mapping_name :

    latitude_longitude

    spatial_ref :

    GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AXIS["Latitude",NORTH],AXIS["Longitude",EAST],AUTHORITY["EPSG","4326"]]

    GeoTransform :

    -180.0 0.0008333333333333334 0.0 90.0 0.0 -0.0008333333333333334

    [1 values with dtype=int32]

• Data variables: (1)
  • band_data
    (band, y, x)
    float64
    ...

    TIFFTAG_SOFTWARE :

    GRASS GIS 7.8.6 with GDAL 3.4.0

    AREA_OR_POINT :

    Area

    [93312000000 values with dtype=float64]

• Indexes: (3)
  • band
    PandasIndex

    PandasIndex(Index([1], dtype='int32', name='band'))

  • x
    PandasIndex

    PandasIndex(Index([-179.99958333333333,          -179.99875, -179.99791666666667,
           -179.99708333333334,          -179.99625, -179.99541666666667,
           -179.99458333333334,          -179.99375, -179.99291666666667,
           -179.99208333333334,
           ...
            179.99208333333334,  179.99291666666667,           179.99375,
            179.99458333333334,  179.99541666666667,           179.99625,
            179.99708333333334,  179.99791666666667,           179.99875,
            179.99958333333333],
          dtype='float64', name='x', length=432000))

  • y
    PandasIndex

    PandasIndex(Index([ 89.99958333333333,           89.99875,  89.99791666666667,
            89.99708333333334,           89.99625,  89.99541666666667,
            89.99458333333334,           89.99375,  89.99291666666667,
            89.99208333333334,
           ...
           -89.99208333333334, -89.99291666666667,          -89.99375,
           -89.99458333333334, -89.99541666666667,          -89.99625,
           -89.99708333333334, -89.99791666666667,          -89.99875,
           -89.99958333333333],
          dtype='float64', name='y', length=216000))

• Attributes: (0)

Maximum damages

One of the most difficult parts of the assessment is to define the maximum reconstruction cost of particular assets. Here we provide a baseline set of values, but these should be updated through national consultations.

maxdam_dict = {'mast' : 10000,
               'communications_tower' : 10000,
              }

To be used in our damage assessment, we convert this to a Pandas DataFrame

maxdam = pd.DataFrame.from_dict(maxdam_dict,orient='index').reset_index()
maxdam.columns = ['object_type','damage']

And check if any of the objects are missing from the dataframe.

missing = set(sub_types) - set(maxdam.object_type)

if len(missing) > 0:
    print(f"Missing object types in maxdam: \033[1m{', '.join(missing)}\033[0m. Please add them before you continue.")

Vulnerability data

Similarly to the maximum damages, specifying the vulnerability curves is complex. We generally have limited information about the quality of the assets, its level of deteriation and other asset-level characteristics.

vulnerability_path = "https://zenodo.org/records/10203846/files/Table_D2_Multi-Hazard_Fragility_and_Vulnerability_Curves_V1.0.0.xlsx?download=1"
vul_df = pd.read_excel(vulnerability_path,sheet_name='F_Vuln_Depth')

And let’s have a look at all the available options

with pd.option_context('display.max_rows', None, 'display.max_colwidth', None):
  display(vul_df.iloc[:2,:].T)

	0	1
ID number	Infrastructure description	Additional characteristics
F1.1	plant	Small power plants, capacity <100 MW
F1.2	plant	Medium power plants, capacity 100-500 MW
F1.3	plant	Large power plants, >500 MW
F1.4	plant	thermal plant
F1.5	plant	wind turbine
F1.6	plant	wind turbine
F1.7	plant	wind turbine
F2.1	substation	Low Voltage Substation
F2.2	substation	Medium Voltage Substation
F2.3	substation	High Voltage Substation
F5.1	cable	Distribution circuits buried crossings
F6.1	Power (minor) line	Distribution circuits (non-crossings)
F6.2	cable	Distribution circuits elevated crossings
F6.3	Energy system	Generalized curve for energy assets in diked areas
F7.1	Roads	NaN
F7.2	Roads	NaN
F7.2a (lower boundary)	Roads	NaN
F7.2b (upper boundary)	Roads	NaN
F7.3	Roads	NaN
F7.4	Roads	Motorways and trunk roads - sophisticated accessories - low flow
F7.5	Roads	Motorways and trunk roads - sophisticated accessories - high flow
F7.6	Roads	Motorways and trunk roads - without sophisticated accessories - low flow
F7.7	Roads	Motorways and trunk roads - without sophisticated accessories - high flow
F7.8	Roads	Other roads - low flow
F7.9	Roads	Other roads - high flow
F7.10	Roads	NaN
F7.11	Roads	NaN
F7.12	Roads	NaN
F7.13	Roads	NaN
F8.1	Railways	Double-tracked railway
F8.2	Railways	Double-tracked railway
F8.3	Railways	NaN
F8.4	Railways	NaN
F8.5	Railways	NaN
F8.6	Railways	NaN
F8.6a (lower boundary)	Railways	NaN
F8.6b (upper boundary)	Railways	NaN
F8.7	Railways	NaN
F8.8	Railways	Railway station
F9.1	Airports	NaN
F9.2	Airports	NaN
F9.3	Airports	NaN
F10.1	Telecommunication	Communication tower
F12.1	Telecommunication	Communication system
F13.1	water storage tanks	Water storage tanks at grade concrete
F13.2	water storage tanks	Water storage tanks at grade steel
F13.3	water storage tanks	Water storage tanks at grade wood
F13.4	water storage tanks	Water storage tanks elevated
F13.5	water storage tanks	Water storage tanks below grade
F14.1	Water treatment plants	Small water treatment plants open/gravity - average flood design
F14.2	Water treatment plants	Medium water treatment plants open/gravity - average flood design
F14.3	Water treatment plants	Large water treatment plants open/gravity - average flood design
F14.4	Water treatment plants	small/medium/large water treatment plants open/gravity - above average flood design
F14.5	Water treatment plants	small/medium/large water treatment plants open/gravity - below average flood design
F14.6	Water treatment plants	Small water treatment plants closed/pressure
F14.7	Water treatment plants	Medium water treatment plants closed/pressure
F14.8	Water treatment plants	Large water treatment plants closed/pressure
F14.9	Water treatment plants	small/medium/large water treatment plants closed/pressure - above average flood design
F14.10	Water treatment plants	small/medium/large water treatment plants closed/pressure - below average flood design
F15.1	Water well	Wells
F16.1	Transmission and distribution pipelines	Exposed transmission pipeline crossing
F16.2	Transmission and distribution pipelines	Buried transmission pipeline crossing
F16.3	Transmission and distribution pipelines	Pipelines (non-crossing)
F17.1	Others	Pumping plants (small) below grade
F17.2	Others	Pumping plants (medium/large) below grade
F17.3	Others	Pumping plants (small) above grade
F17.4	Others	Pumping plants (medium/large) above grade
F17.5	Others	Pumping plants
F17.6	Others	Control vaults and stations
F18.1	Wastewater treatment plant	Small wastewater treatment plants
F18.2	Wastewater treatment plant	Medium wastewater treatment plants
F18.3	Wastewater treatment plant	Large wastewater treatment plants
F18.4	Wastewater treatment plant	Small, medium, large Wastewater treatment plants - above average flood design
F18.5	Wastewater treatment plant	Small, medium, large Wastewater treatment plants- below average flood design
F18.6	Wastewater treatment plant	NaN
F19.1	Transmission and distribution pipelines	Sewers & Interceptors: Exposed collector river crossings
F19.2	Transmission and distribution pipelines	Sewers & Interceptors: Buried collector river crossings
F19.3	Transmission and distribution pipelines	Sewers & Interceptors: Pipes (non-crossings)
F20.1	Others	Control vaults and control stations
F20.2	Others	Lift stations: lift station (small), wet well/dry well
F20.3	Others	Lift stations: lift station (medium large), wet well/dry well
F20.4	Others	Lift stations: lift station (small), submersible
F20.5	Others	Lift stations: lift station (medium large), submersible
F21.1	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.2	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.3	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.3a (lower boundary)	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.3b (upper boundary)	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.4	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.4a (lower boundary)	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.4b (upper boundary)	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.5	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.5a (lower boundary)	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.5b (upper boundary)	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.6	Education & Health	Generalized curve for commercial buildings, which also includes schools and hospitals
F21.7	School buildings	Generalized curve for companies (incl. government)
F21.8	Health & education	Generalized curve for offices in diked areas
F21.9	Education & Health	Generalized function for industry
F21.10	School buildings	Generalized curve for buildings
F21.11	School buildings	NaN
F21.12	Health buildings	NaN
F21.13	Education buildings	NaN

And select a curve to use for each different subtype we are analysing.

sub_types

array(['mast', 'communications_tower'], dtype=object)

selected_curves = dict(zip(sub_types,['F10.1','F6.1']))

The next step is to extract the curves from the database, and prepare them for proper usage into our analysis.

We start by selecting the curve IDs from the larger pandas DataFrame vul_df:

damage_curves = vul_df[['ID number']+list(selected_curves.values())]
damage_curves = damage_curves.iloc[4:125,:]

Then for convenience, we rename the index name to the hazard intensity we are considering.

damage_curves.set_index('ID number',inplace=True)
damage_curves.index = damage_curves.index.rename('Depth')

And make sure that our damage values are in floating numbers.

damage_curves = damage_curves.astype(np.float32)

And ensure that the columns of the curves link back to the different asset types we are considering:

damage_curves.columns = sub_types

There could be some NaN values at the tail of some of the curves. To make sure the code works, we fill up the NaN values with the last value of each of the curves.

damage_curves = damage_curves.fillna(method='ffill')

Finally, make sure we set the index of the damage curves (the inundation depth) in the same metric as the hazard data (e.g. meters or centimeters).

damage_curves.index = damage_curves.index*100

Ancilliary data for processing

world = gpd.read_file("https://github.com/nvkelso/natural-earth-vector/raw/master/10m_cultural/ne_10m_admin_0_countries.shp")
world_plot = world.to_crs(3857)

admin1 = gpd.read_file("https://github.com/nvkelso/natural-earth-vector/raw/master/10m_cultural/ne_10m_admin_1_states_provinces.shp")

3. Preparing the Data

Clip the hazard data to the country of interest.

country_bounds = world.loc[world.ADM0_ISO == country_iso3].bounds
country_geom = world.loc[world.ADM0_ISO == country_iso3].geometry

hazard_country = hazard_map.rio.clip_box(minx=country_bounds.minx.values[0],
                     miny=country_bounds.miny.values[0],
                     maxx=country_bounds.maxx.values[0],
                     maxy=country_bounds.maxy.values[0]
                    )

5. Performing the Damage Assessment

We will use the DamageScanner approach. This is a fully optimised damage calculation method, that can capture a wide range of inputs to perform a damage assessment.

%%time
damage_results = DamageScanner(hazard_country, features, damage_curves, maxdam).calculate()

Calculating damage: 100%|██████████████████████████████████████████████████████████| 198/198 [00:00<00:00, 4757.38it/s]

CPU times: total: 2.03 s
Wall time: 14.8 s

damage_results = damage_results[damage_results.damage > 0 ]

5. Save the Results

For further analysis, we can save the results in their full detail, or save summary estimates per subnational unit

hazard = 'river_flood'
return_period = '1_100'
damage_results.to_file(f'Telecommunication_Damage_{country_full_name}_{hazard}_{return_period}.gpkg')

admin1_country = admin1.loc[admin1.sov_a3 == country_iso3]

damage_results = damage_results.sjoin(admin1_country[['adm1_code','name','geometry']])

admin1_damage = admin1_country.merge(damage_results[['name','damage']].groupby('name').sum(),
                                     left_on='name',
                                     right_on='name',
                                     how='outer')[['name','adm1_code','geometry','damage']]

admin1_damage.to_file(f'Admin1_Telecommunication_Damage_{country_full_name}_{hazard}_{return_period}.gpkg')

6. Visualizing the Results

The results of the damage assessment can be visualized using charts and maps. This will provide a clear representation of which infrastructure is most affected by the hazard and the expected damage levels.

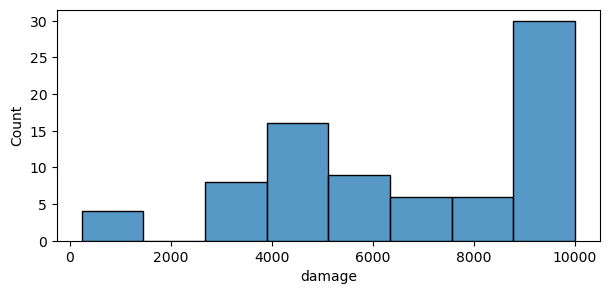

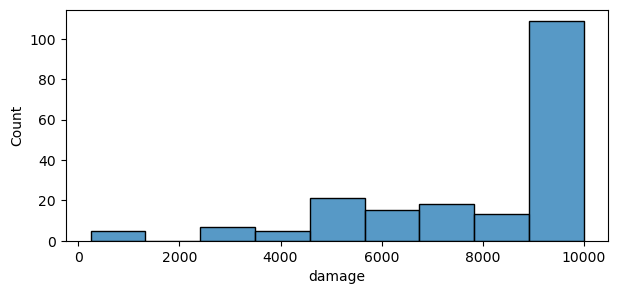

And create a distribution of the damages.

fig, ax = plt.subplots(1,1,figsize=(7, 3))

sns.histplot(data=damage_results,x='damage',ax=ax)

<Axes: xlabel='damage', ylabel='Count'>

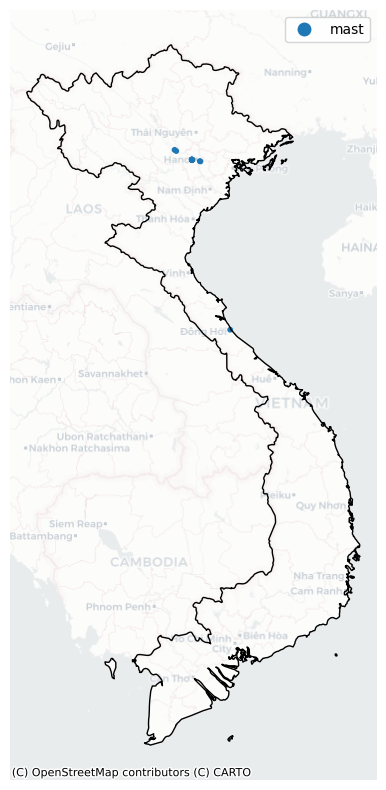

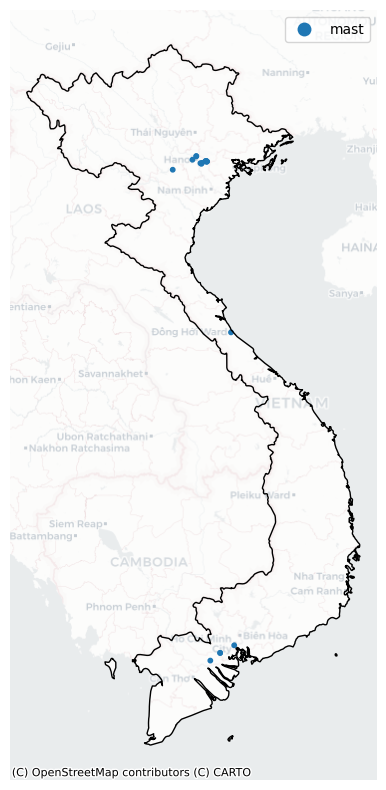

Plot location of most damaged power infrastructure assets.

fig, ax = plt.subplots(1,1,figsize=(5, 10))

subset = damage_results.to_crs(3857).sort_values('damage',ascending=False).head(20)
subset.geometry = subset.centroid
subset.plot(ax=ax,column='object_type',markersize=10,legend=True)
world_plot.loc[world.SOV_A3 == country_iso3].plot(ax=ax,facecolor="none",edgecolor='black')
cx.add_basemap(ax, source=cx.providers.CartoDB.Positron,alpha=0.5)
ax.set_axis_off()

viz(damage_results)
